Sand Filled Recoverable 50x50mm Military Hesco Barriers

Orientland Wire Mesh Products Co., Ltd
Contact Now

Sand Filled Recoverable 50x50mm Military Hesco Barriers

  • 1
  • 2
  • 3

Brand Name : ORIENTLAND

Model Number : ORDB005

Certification : ISO,SGS

Place of Origin : ANPING, CHINA

MOQ : 50 Units

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000units per month

Delivery Time : 20-25days

Packaging Details : Wooden Pallet, Iron Pallet

Material : Hot dipped galvanized wire, Galfan wire

Hole shape : Square

Wire diameter : 3mm, 4mm,5mm

Aperture : 3"×3", 2"× 2", 50x50mm, 75x75mm

Width : 0.61-2.13m

Height : 0.61-2.21m

Helical Wire dia. : 3mm, 4mm

Type : Welded Mesh

Geotextile : 250g/m2, 300g/m2, 400g/m2

Geotextile color : White, Green, Brown, Black

Application : Military defensive, Flood control retaining wall

Feature : Easily Assembled, Durable, Anti-corrosion

Contact Now

Sand Filled Recoverable Defensive Barriers Uv-Resistant Hesco Bastion


Products Description

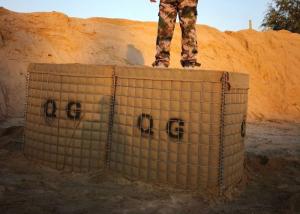

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely used for military fortification and flood control.

Since their first use in the First Gulf War in 1991, the defensive barriers have become synonymous with force protection. Their unique design lets you use your environment to efficiently create limitless defensive barriers. Our defensive barriers are configurable and can be deployed to meet your operational requirements.

Nowadays the terrorrist attackers, suicide bombers and insurgents engaged in a growing number, continue guerrilla warfare and use artillery, missile equipment, improvised explosive devices, therfore it became necessary to review the Force Protection and to developed new procedures, methods.

Specification:

Material: Hot-dipped galvanized steel wire or zinc-aluminum alloy steel wires.
Wire diameter: 4 mm or 5 mm.
Mesh size: 50 × 50 mm, 75 × 75 mm, 76.2 × 76.2 mm, 50 × 100 mm, 100 × 100 mm, etc
Geotextile: 320g, 400g heavy duty non-woven polypropylene
Geotextile color: White, beige, Military Green and other customized colors.

Model Height (M) Width(M) Length(M) No. of cells
MIL 1 1.37 1.06 10 5+4=9cells
MIL 2 0.61 0.61 1.21 2cells
MIL 3 1.0 1.0 10 5+5=10cells
MIL 4 1.0 1.5 10 5+5=10cells
MIL 5 0.61 0.61 3.055 5cells
MIL 6 1.68 0.61 3.05 5cells
MIL 7 2.21 2.13 27.74 5+4+4=13cells
MIL 8 1.37 1.22 10 4+5=9cells
MIL 9 1.0 0.76 9.14 6+6=12cells
MIL 10 2.13 1.52 30.5 5+5+5+5=20cells

Product Features

  • All mil units are lined with a non-woven, uv-resistant geotextile with a five-year field life they can cope with harsh environments. each unit is available in beige (as default) or green standard colors.
  • The units are available in a range of heights and widths to provide protection against various threats including vehicles.
  • The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
  • Units can be transported in containers or flat-bed vehicles for a quick clean up.
