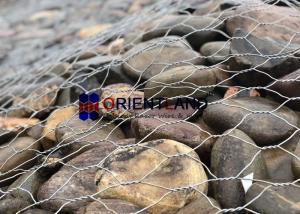

6×8 Heavy Zinc Coating Gabion , , Galfan coating Gabion Soil Protection
Products Description:
coating wire also named Galfan coating wire. Normally there is two types wire using for weaving gabion mesh in the market. It's 95%Zinc+5%Aluminium Mischmetal Alloy and 90%Zinc+10%Aluminium Mischmetal Alloy.
Galfan offers a more homogenous, ductile and smoother coating than does galvanized zinc. The result is that the galfan is less affected by abrasion. Galfan coating offers up to 3 times better corrosion protection than standard zinc coating in salt spray test, and up to 2 times better corrosion protection than standard zinc coating in the SO2 Atmosphere test.
Galfan offers better sacrificial protection of the steel wire than standard galvanized zinc.
Galfan coated Gabion box can be supplied in various length, width and height. In order to strengthen the box, all the edge of the structure shall be selvedged with bigger diameter wire.
Gabion Technical Parameter:
| Wire dia.(mm) | 2.0 | 2.2 | 2.4 | 2.7 | 3.0 | 3.4 | 3.9 |
| Tolerance(mm) | 0.05 | 0.06 | 0.06 | 0.06 | 0.07 | 0.07 | 0.07 |
| Min. Zinc coating(g/m2) | 215 | 230 | 230 | 245 | 255 | 265 | 275 |
Gabion specifications:
| Mesh Size | Tolerance | Diameter | Length | Width | Height | Diaphragms |
| 80×100mm 100×120mm | +16%/-4% | 2.0-3.0mm | 1.5 | 1 | 0.5 | 0 |
| 1.5 | 1 | 1 | 0 |
| 2 | 1 | 0.5 | 0/1 |
| 2 | 1 | 1 | 0/1 |
| 3 | 1 | 0.5 | 0/2 |
| 3 | 1 | 1 | 0/2 |
| 4 | 1 | 1 | 0/3 |
| Mesh Size | Tolerance | Wire Dia. | Length | Width | Height | Diaphragms |
| 60×80mm | +16%/-4% | 2.0-2.5mm | 3-6m | 1-3m | 0.17-0.3m | 2-5 |
Gabion box application:
- Control and guide of water or flood
- Preventing of rock breaking
- Rock fall protection
- Water and soil protection
- Bridge protection
- Strengthening structure of soil
- Protection engineering of seaside area.
- Port project
- Keep off dust wall
- Roadway protection.
Gabion advantage
1).Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2).Anti-erosion ability, able to withstand the maximum flow rate of up to 6m/s.
3).This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
Gabion Box Packing:
FAQ:
1.How to make a inquiry of your Gabion?
You need to provide your prefored Material, Aperture size, Wire Diameter, Dimension and the Quantity, you can also indicate if you have
any special requirement. We'll provide formal quotation list once received your inquiry.
2.Could you provide free sample?
Yes,we can provide free sample.
3.How is your payment term?
Generally,our payment term is 30%T/T in advance and the balance against the copy of B/L. LC also could be acceptable. Other payment term could be negotiated.
4.How is your delivery time?
We always prepare enough stock material for your urgent order. Normally 1000pcs 2×1×1m gabion baskets only need 3 days to producr. For you specific order, we'll make the best solution.
